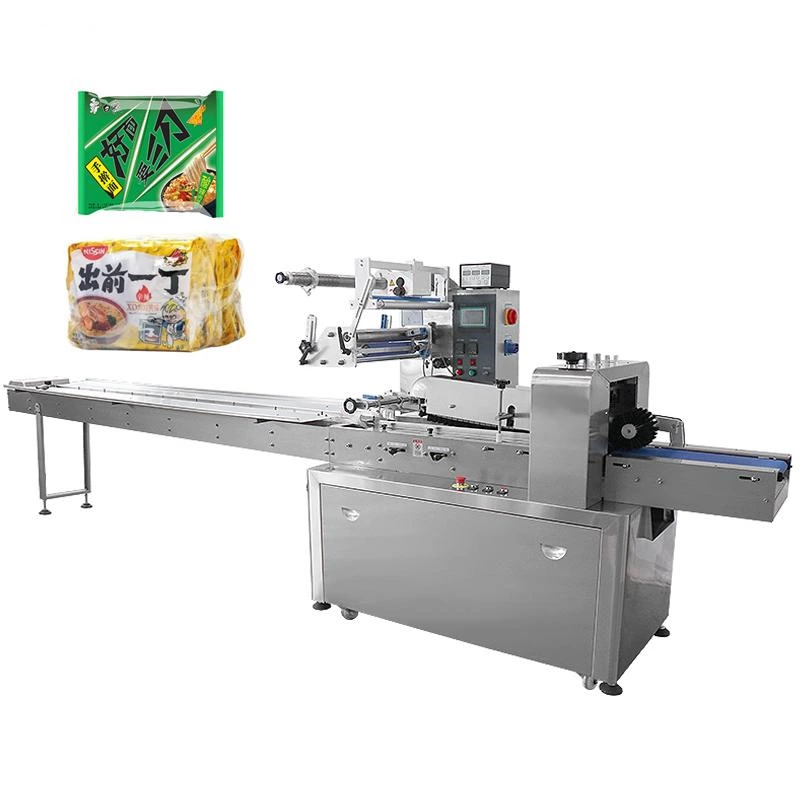

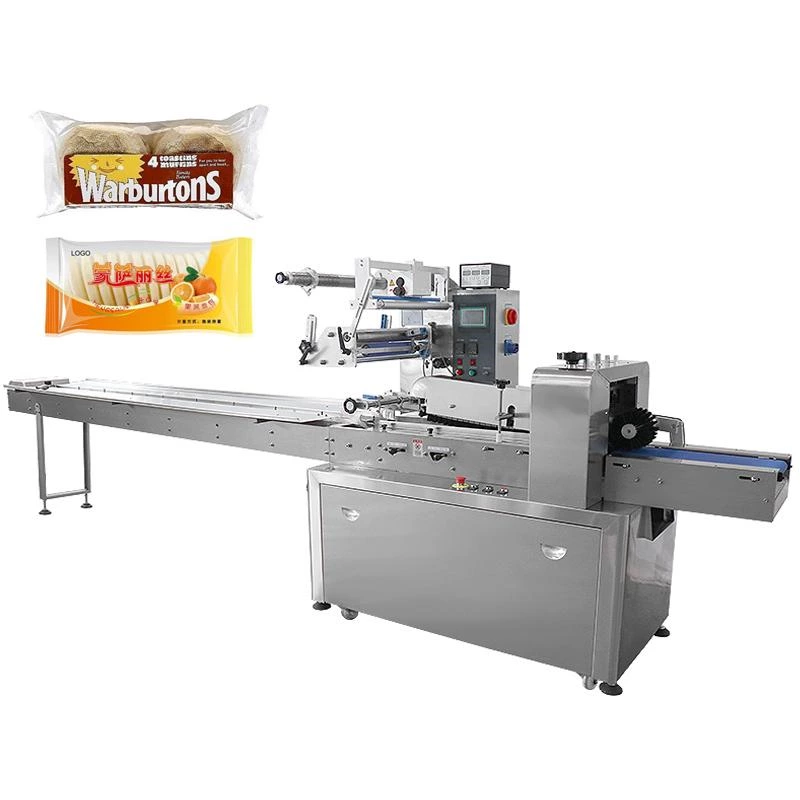

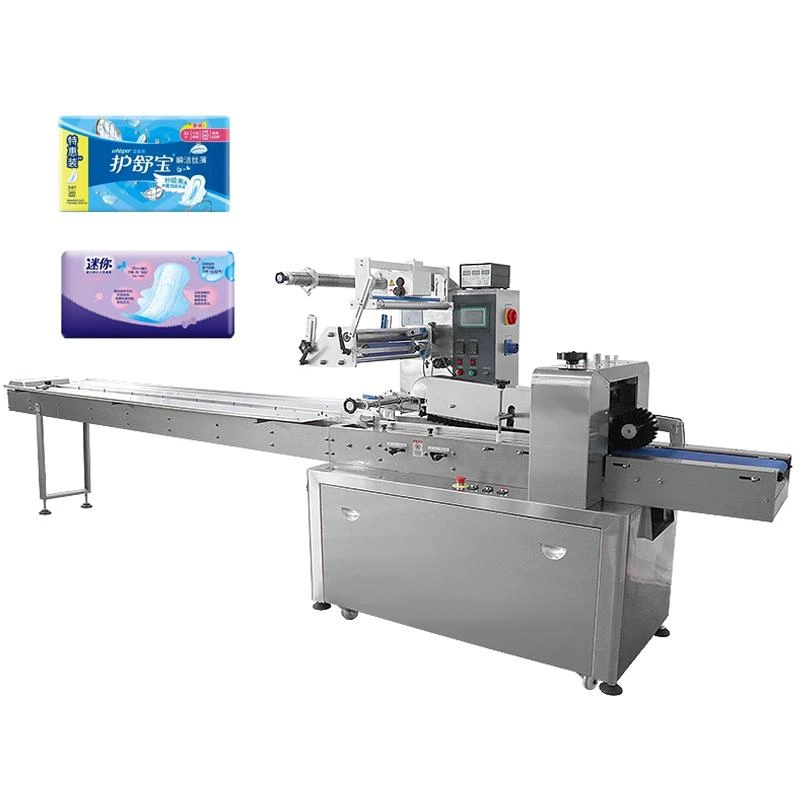

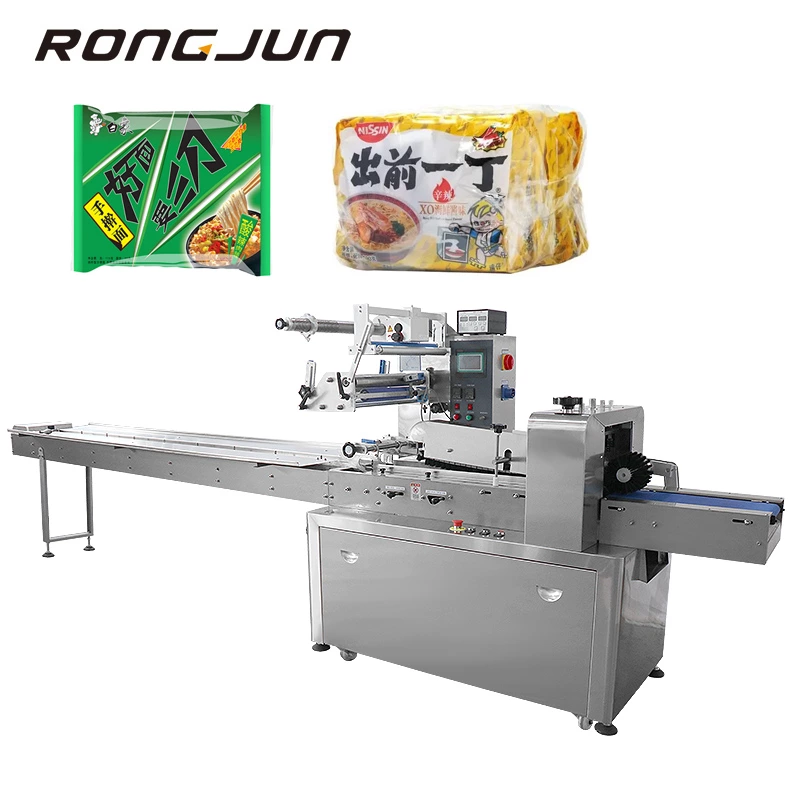

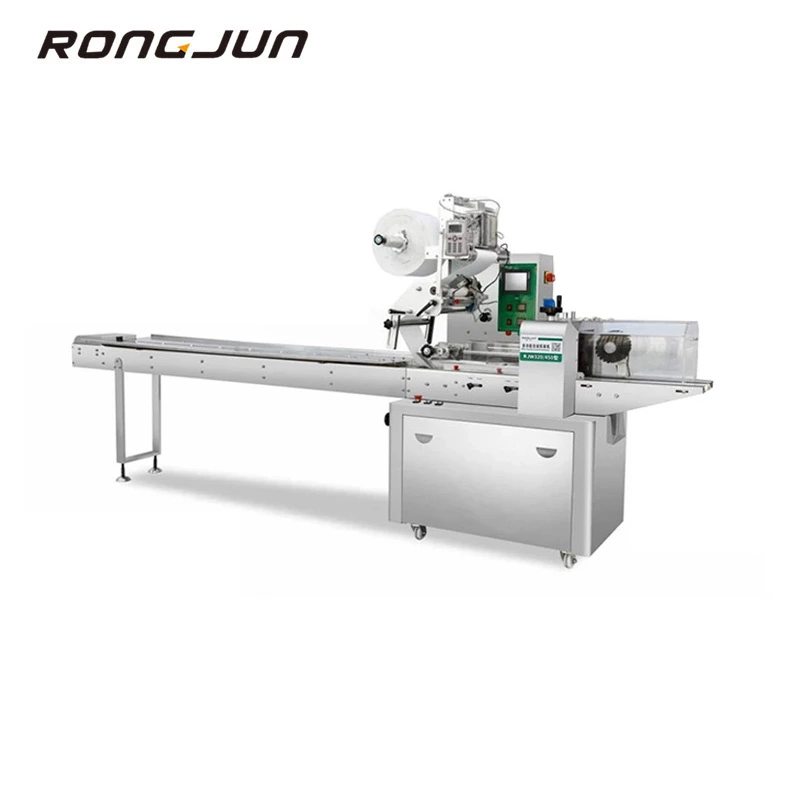

RJW320/450 Stainless Steel Single Or Three Servo Automatic Packing Machine
- Place of Origin :
- Wenzhou, Zhejiang, China
Performance Characeristcs
- The whole machine adopts PLC control, man-machine interface
- Photoelectric automatic tracking system
- Sealed area independent temperature display control, new vertical seal heating
- A variety of packing, a set of equipment can be used for dfferent sizes of product packing
- Machine stainless steel panel
Scope of application
Suitable for large packes of regular objects such as biscuits, moon cakes, bread, instant noodles,lamps, pipe fttings, industrial parts cartons or trays.
Technical Parameters
| Model | RJW-320 | RJW-450 |
| Packing Speed(bag/min) | 10-180 | 10-180 |
| Packing Size(mm) | L80-320 W30-120 H5-150 | L120- 400 W30-180 H5-70 |
| Film Max Width(mm) | ＜360 | <500 |
| Film Thickness(mm) | ≥0.02 | ≥0.02 |
| Power | 220V，50/60Hz，3.0KW | 220V，50/60Hz，3.2KW |
| Overall Dimensions(mm) | L5320×W880×H1550 | L5320×W950×H1550 |
| Weight(kg) | 600 | 800 |
| Package | 2.6CBM，2CASES | 3.1CBM,2CASES |
| Package Material | OPP/PP、OPP/CPP、PT/PE、PE、KOP/CPP、PT/PE/、AL/PE etc. | |
Optional configuration: full servo control, punching, corner inserting, labeling, alcohol spraying, automatic film connection, no material standby, thermal transfer, suction
