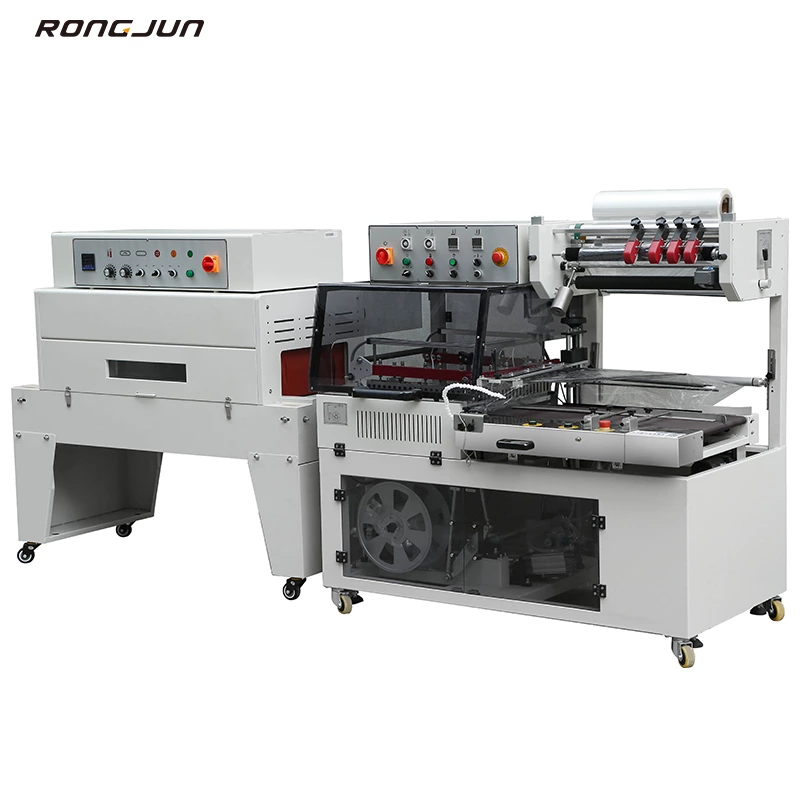

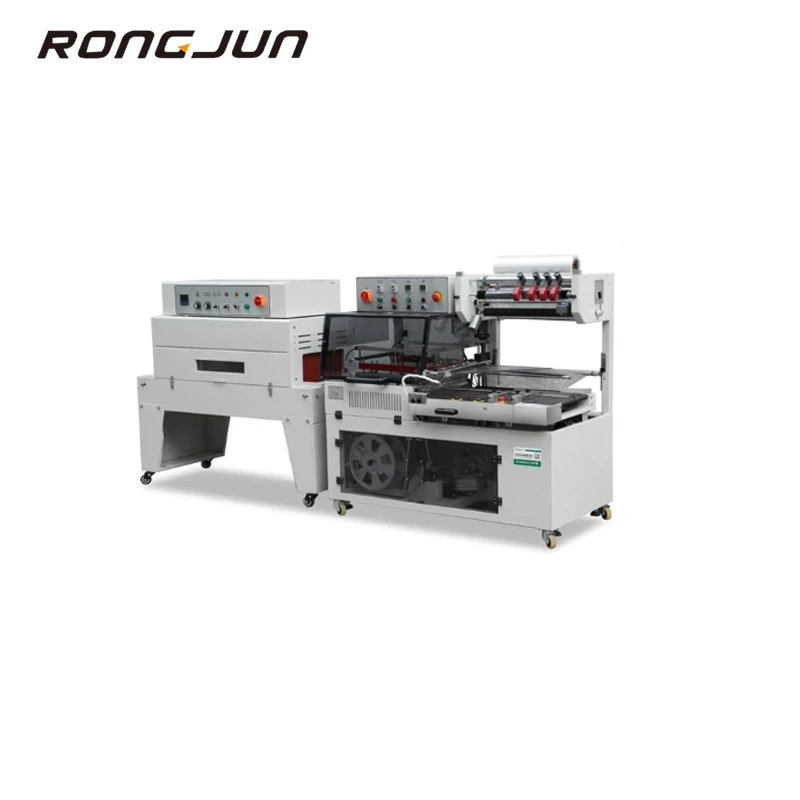

QL5545 Automatic L-type Sealing And Cutting Machine

Place of Origin :
Wenzhou, Zhejiang, China
Enquiry
QL5545 Automatic L-type Sealing And Cutting Machine
QL5545 Automatic L-type Sealing And Cutting Machine

Performance Charateristics

  • The machine sealing knife uses special alloy material to spray Teflon.Effectively ensure that the sealing and cutting are not mucous membranes and the sealing is firm
  • Complete machine complete automation system with photoelectric detection,unmanned automatic operation

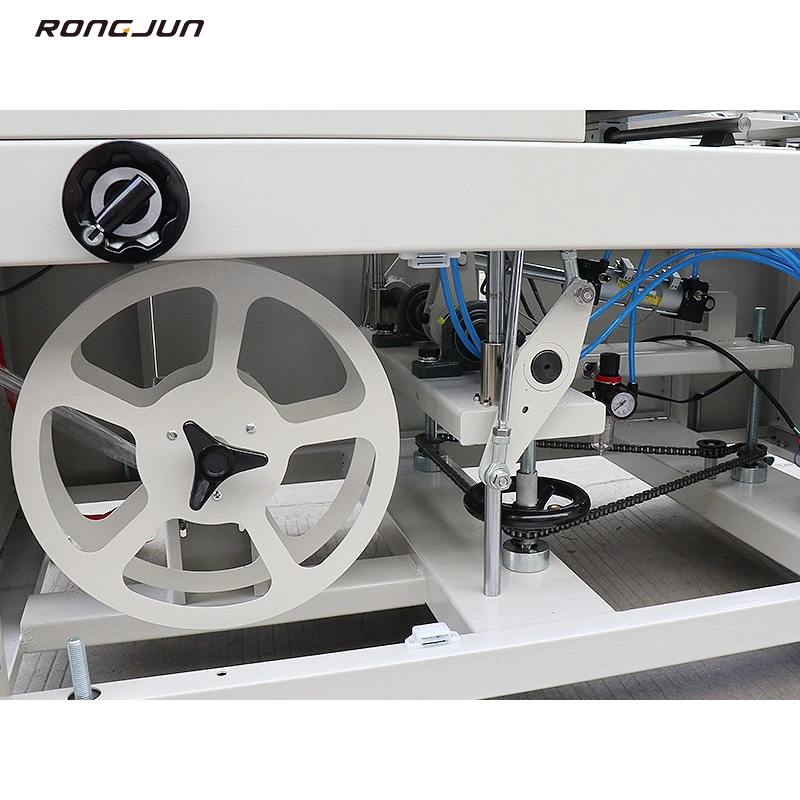

  • Product conversion specification adjustment, only need to be adjusted by hand wheel,can be directly connected with the production line
  • This machine has the most basic protection function to prevent miscut packing

Scope of application

  • Widely used in the shrink packing of cosmetics, printed matter, pharmaceuticals, software,food, beverage, hardware and plastics industries,Applicable to the packing of various shrink packing materials such as POF.PE, PVC.

Technical Parameters

Model QL5545 BS-D4520
Max Package Size(mm) H≤130  L+2H≤550  W+2H≤450 W450×H200
Max Sealing Sizel(mm) L550×W450 /
Power(kw) 1.30 8.5
Efficiency (m/min) 0-16 0-16
Voltage (V/Hz) 220V 50/60Hz 380V 50/60Hz
Operation Pressure(kg/cm²) 5 /
Net Weight(kg) 320 210
Overall Size(mm) L1700×W900×H1400 Overall L1600×W730×H1400
Tunnel L1200×W450×H200

QL5545 Automatic L-type Sealing And Cutting MachineQL5545 Automatic L-type Sealing And Cutting MachineQL5545 Automatic L-type Sealing And Cutting Machine

QL5545 Automatic L-type Sealing And Cutting MachineQL5545 Automatic L-type Sealing And Cutting MachineQL5545 Automatic L-type Sealing And Cutting MachineQL5545 Automatic L-type Sealing And Cutting MachineQL5545 Automatic L-type Sealing And Cutting Machine
