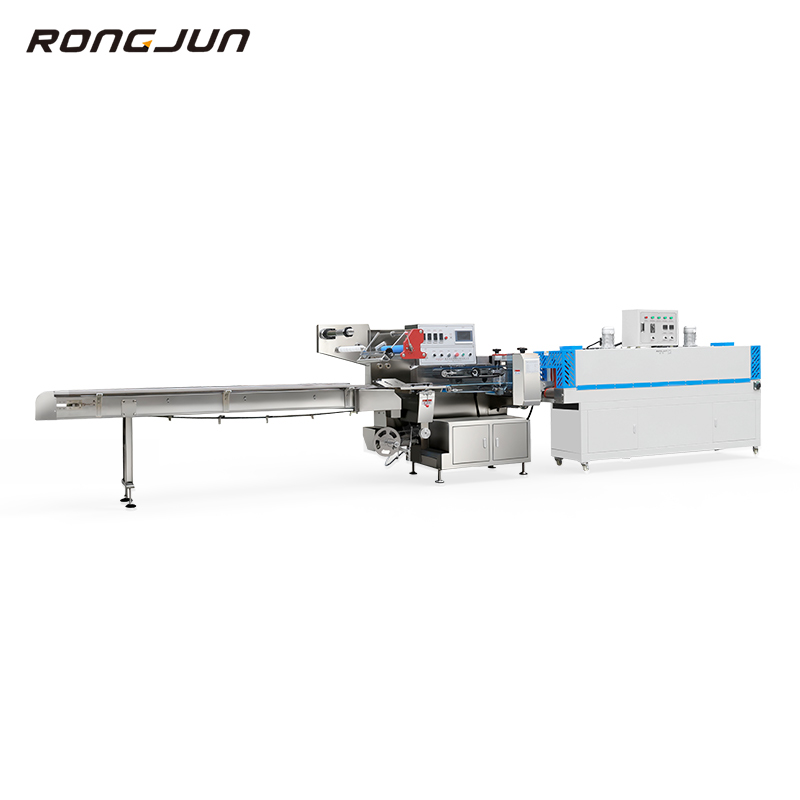

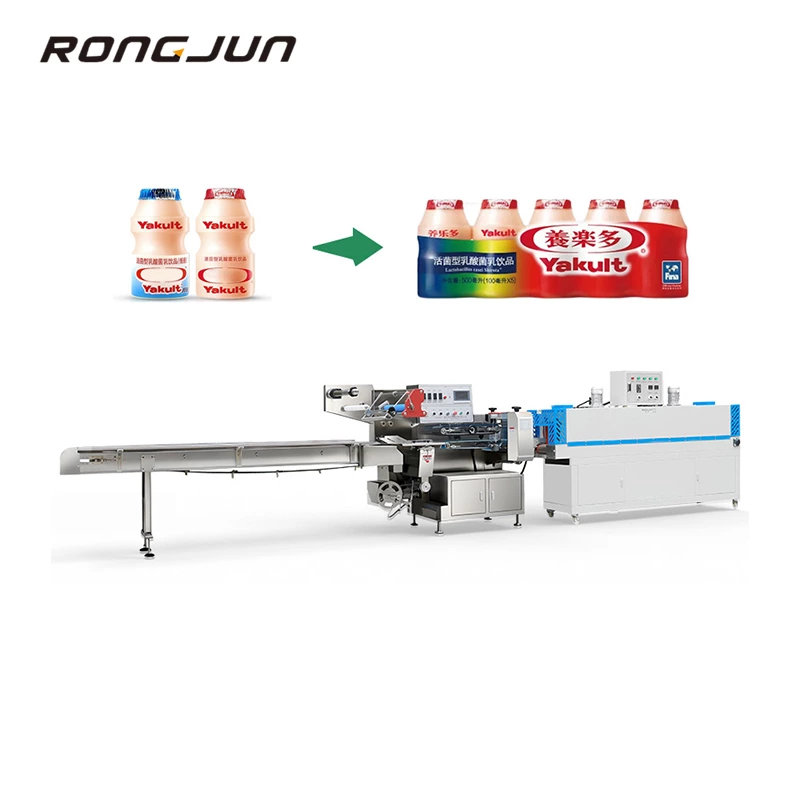

RJW 590/720 Servo Control High Speed Shrink Packing Machine
- Place of Origin :
- Wenzhou, Zhejiang, China
This high speed auto wrapping machine is produced according to Japanese Techniques with their developed technique and rich experience, and all electrical elements are imported. This machine can be easily operated, of good quality and stable performance. The speed can be frequency varied but not classed. PLC is equipped to control the unit to reduce failure points.Circulated high efficiency air and auto temperature control at high efficiency area of heated contract furnace ensure contracting quality.
Performance Characteristics
- With novel structure, stable performance and high degree of automation
- Adopt PLC servo system, large touch screen, accurate operation
- High-precision photoelectric tracking system with accurate sealing and cutting position
- Specially designed bag maker for easy access Quickly adjust to dfferent package product sizes Anumber of safety alarms and protection functions of the whole machine,
- automatic tracking of material levels
Scope of aplication
Applicable to the packing of various solid-state regular items such as bread, cake, instant noodles, biscuits, frozen food, chocolate, soap, paper towels, tape, industrial parts, etc,recommended models with large packing of trays.
Technical Parameters
| Model | RJW-590 | RJW-720 |
| Packing Speed(bag/min) | 30-80 | 20-60 |
| Packing Size(mm) | (L)150-400 (W)32-200 (H)5-75 | (L)150-400 (W)80-215 (H)50-100 |
| Film Width(mm) | 120-590 | 150-720 |
| Package Material | OPP/CPP. PT/PE. KOP/CPP | OPP/CPP. PT/PE. KOP/CPP |
| Overall Dimensions(mm) | L4400×W965×H1520 | L6730×W1310×H1600 |
| Total Power(kw) | 3.7 | 4.24 |
| Weight(kg) | 1000 | 1100 |
